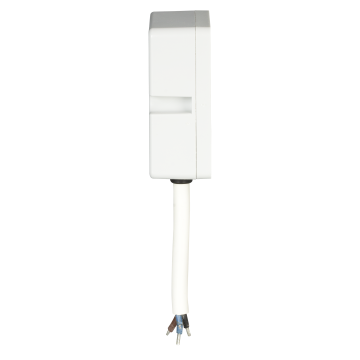

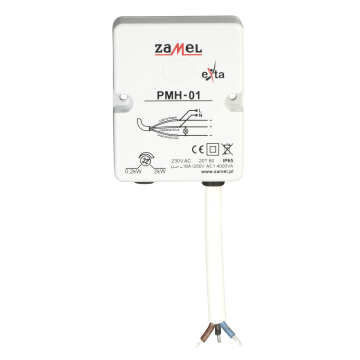

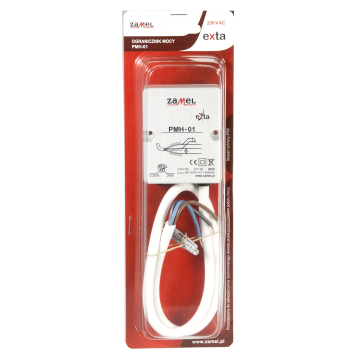

POWER ABSORPTION LIMITER 230V AC 0,2-2kW TYPE: PMH-01
Product Description
The PMH-01 power limiter is used to automatically switch off the power supply in the supervised circuit when the set power consumption of the receivers is exceeded. The power value can be fluently adjusted in the range of 0.2 to 2 kW using a potentiometer. More power cycles in the case of switching off the receivers are carried out at approx. 40 s. The hermetic housing ensures safe operation of the device under adverse conditions (IP65).
PRODUCT FUNCTIONAL FEATURES:
- Overload protection,
- wide range of power regulation,
- overload protection,
- resistance to short-term overrun fixed power level,
- smooth power threshold adjustment,
- hermetic housing.
Power supply terminals L (black), N (blue)
Rated supply voltage 230 V
Rated temperature - 20/60 °C
Rated frequency 50/60 Hz
Parameters of relay contacts 1NO 16 A / 250 V AC1 4000 VA
Protection degree IP65
Width 69 mm
Height 56 mm
Depth 27 mm
Weight 0,12 g
Setting the power threshold 0,2 ÷ 2 kW (rotary potentiometer)

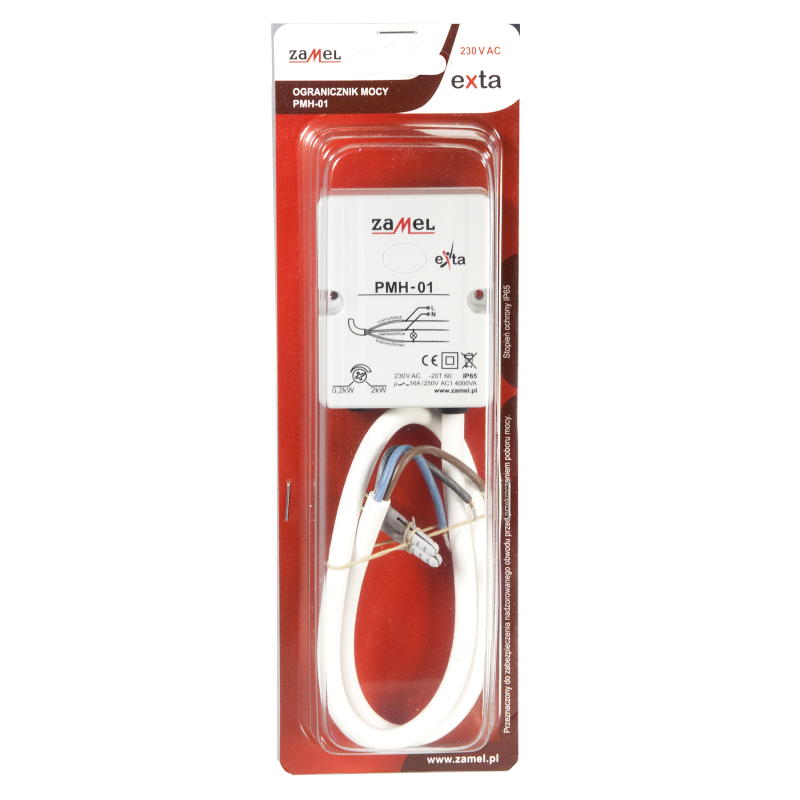

Length of packaging 4 cm
