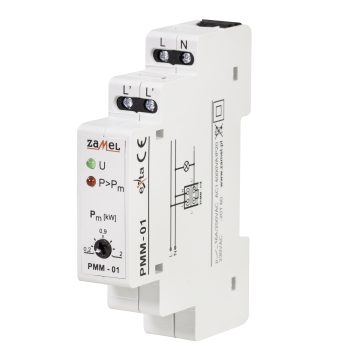

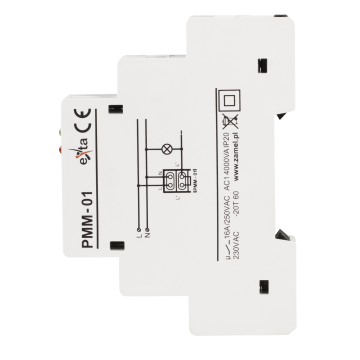

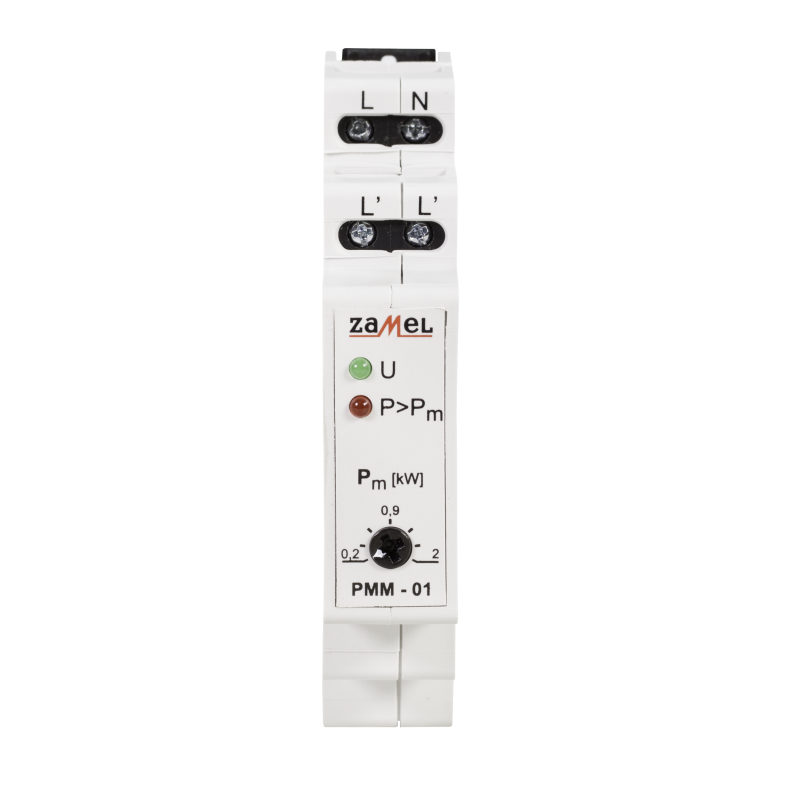

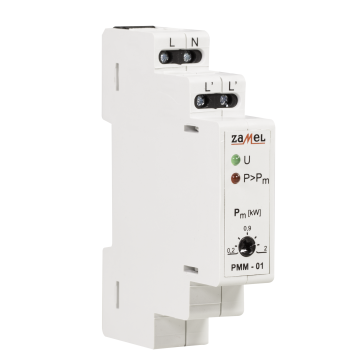

POWER ABSORPTION LIMITER 230V AC 0,2-2kW TYPE: PMM-01
Product Description
The PMM-01 power limiter is used to automatically switch off the power supply in the supervised circuit when the set power consumption of the receivers is exceeded. The power value can be fluently adjusted in the range of 0.2 to 2 kW using a potentiometer. Further cycles of power measurement in the case of switching off the receivers are realized at approx. 40 s.
PRODUCT FUNCTIONAL FEATURES:
- Overload protection,
- overload threshold indicator,
- resistance to short-term overrun fixed power level
- overload protection,
- smooth power threshold adjustment,
- TH 35 DIN rail installation.
- Input rated indicator
- wide range of power regulation,
- TH-35 DIN rail installation.
Power supply terminals L, N
Rated temperature - 20/60 °C
Rated frequency 50/60 Hz
Parameters of relay contacts 1NO 16 A / 250 V AC1 4000 VA
Protection degree IP20
Width 90 mm
Height 17,5 mm
Depth 66 mm
Weight 0,08 g
Setting the power threshold 0,2 ÷ 2 kW (rotary potentiometer)
Length of packaging 2,2 cm
