PRODUCTS GARDI - SECURITY SYSTEMS

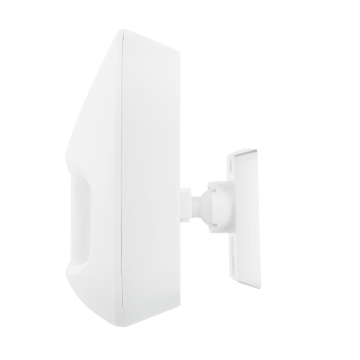

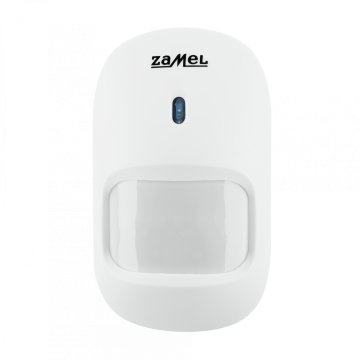

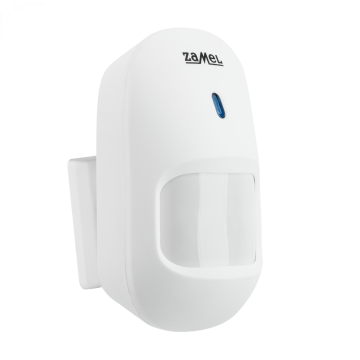

WIRELESS MOTION SENSOR FOR ZAM-350 ALARM TYPE: ZAM -350/R
Product Description
Radio Infrared Wireless (PIR) sensor, intended for operation with the ZAM-350 alarm set. The radio range between the sensor and the control unit is 100 m in open area. Up to 6 sensors can be programmed into one panel.
PRODUCT FUNCTIONAL FEATURES:
- Range of motion detection: 8 m
- Angle of motion detection: 120 degrees
- Radio communication with the panel over a distance of up to 100 m in open area
Protection degree IP20
Field of view 120 °
Range of motion detection 8 m
Temperature range of operation 0-40 °C
Motion sensor supply voltage 3V (2x bateria AAA)
Motion sensor power consumption 0,03 W
Frequency 433 MHz
Radio range 100 m
Motion sensor's dimensions 65 x 110 x 75 mm
Maximum number of sensors 6 st
Siren volume on the panel 100 dB
