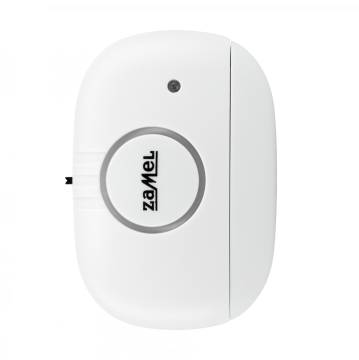

WIRELESS REED SENSOR FOR ZAM-350 ALARM TYPE: ZAM-3 50/K

Product Description

Wireless reed relay sensor for opening doors or windows designed to work with the ZAM-350 alarm set. The sensor communicates with the ZAM-350 system control panel by radio. Up to 6 sensors can be programmed into one panel. It also has a second mode of operation in which it can operate independently thanks to the built-in alarm siren. The operating range is 100 m in open area.
Symbol

ZAM-350/K

PRODUCT FUNCTIONAL FEATURES:

  • Additional sensor intended for use with the ZAM-350 alarm panel

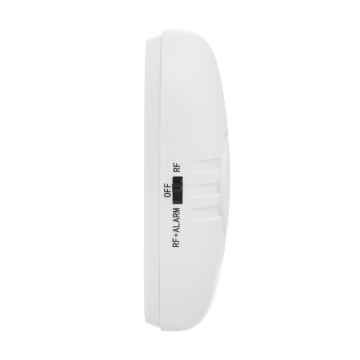

  • 2 modes of operation: alarm panel or stand-alone operation (siren built in 90 dB sensor)
  • Radio communication with the panel over a distance of up to 100 m in open area
Protection degree IP20
Reed sensor supply voltage 4,5
Reed sensor power consumption 0,45 W
Frequency 433 MHz
Radio range 100 m
Reed sensor's dimensions 52 x 76 x 20 mm
Maximum number of sensors 6 st
Siren volume on the panel 100 dB
Siren volume in the reed sensor 90,0 dB
